- No.1 Supplier
- Certified ISO 9001 : 2008
×
FSD37SS
UL 555/555S 1.5 hr./Class I, V-Groove
Blade, 2,000 fpm and 4" w.g. max, Optional Sleeve.
Product Features:
-

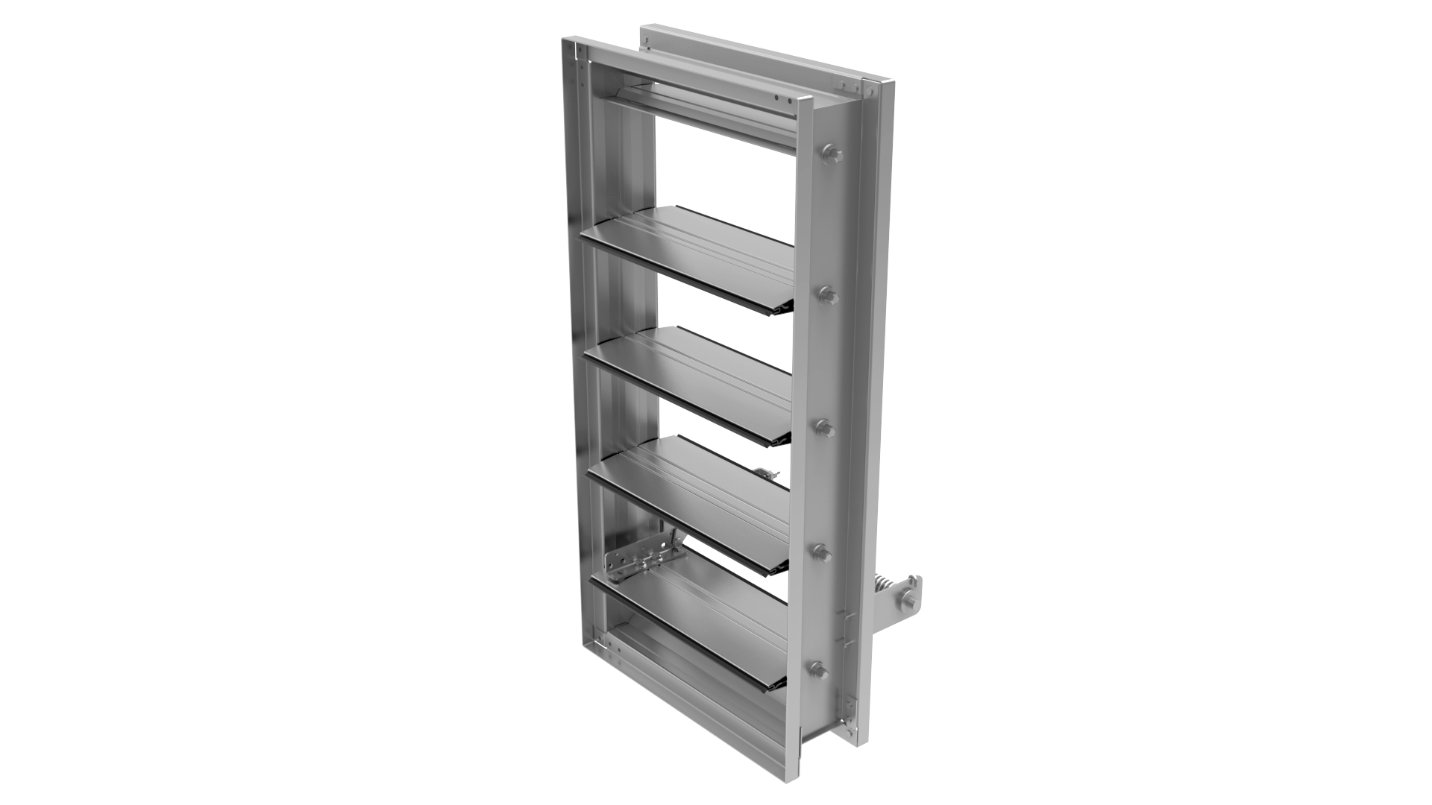

The FSD37SS Combination Fire/Smoke Damper is both UL555 and UL555S Classified. It is
rated as a 1 1/2 hour fire damper and a Leakage Class I Smoke Damper. It features:
- Triple V-Groove Blades.
- Maximum rating of 2,000 fpm and 4" w.g.
- UL approval for dual directional airflow.
- Failsafe design, which enables the damper to automatically assume the desired position when fire or smoke (if smoke detector is present) interrupts operational power.
- Controlled closure in not less than 3 seconds and no more than 15 seconds to prevent HVAC and duct damage.
- Automatic remote reset after test, smoke detection or power failure conditions. Stainless steel construction.
Additional Resources
-
Product Data/Submittal (PDF)
